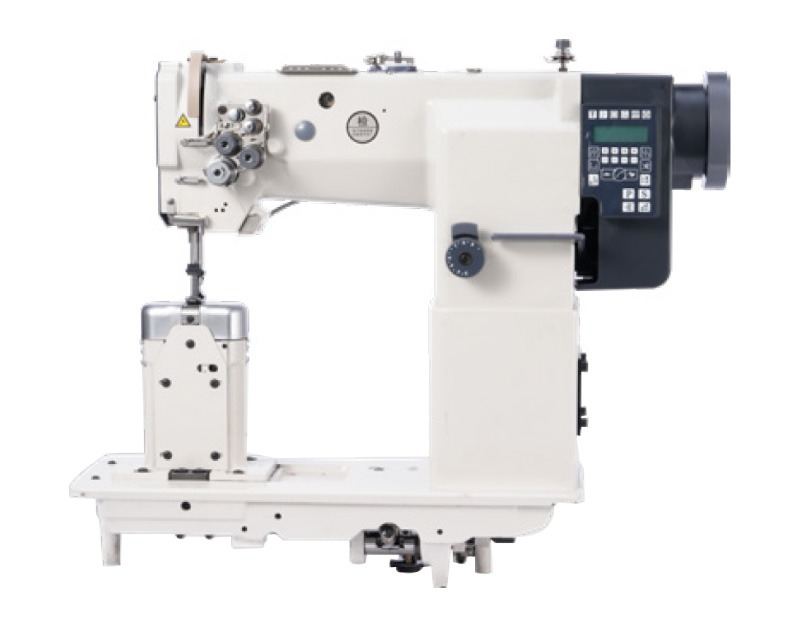

Double pin lengthened triple sync highhead

Usage

Exquisite sewing of footwear, luggage, sofa seats, car upholstery and other high-grade leather and sporting goods.

Function

Large shuttle, pneumatic or electromagnet lift foot function.

1. The elongated design is more suitable for sewing large items

2. This model adopts a combined feeding method of foot pressing, needle feeding, and tooth feeding, so the sewing materials on both the upper and lower layers are not easily detached, and can be precisely and easily sewn on multiple layers of materials. The sewing is smooth and natural, which can improve the sewing quality.

3. The use of a large rotary shuttle in this model can improve sewing efficiency.

4. Adopting energy-saving servo direct drive motor, the sewing speed can be preset and controlled, stable, energy-saving and environmentally friendly.

5. This model adopts an intelligent control system and can be equipped with pneumatic (electromagnetic) lifting and reverse sewing.

6. This model adopts an automatic lubrication system, which operates smoothly without noise and is easy to maintain.

7. Optional needle positions: 2.4m m m, 3.2m m m, 4.0m m m, 4.8m m m, 5.5m m m, 6.4mm, 8.0m m m,

9.5m m, etc.

Technical specifications
ZH -8350L ZH -8350	134P C L90/14(M ) 134P C L120/19(M )	200-2500rpm	M 、H (0-5.0m m )	NO	Foot arch 12mm automatic 12mm The exchange volume of the large and small presser feet is 3-7m m
