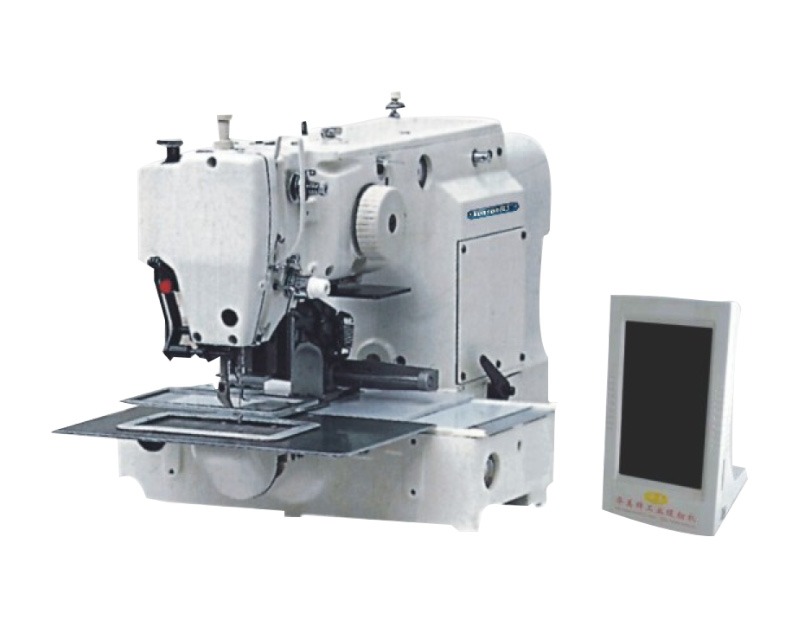

FEATURES:
Equipped with liquid crystal touch- pad panel more powerful funcitions
HIGH SPEED
Max. Sewing Speed : 2, 500rm
EASY OPERATION
Liquid Crystal Touch Operation Panel
VERSATILITY
Equipped with the simple program controller function
Specification:
MODEL | KS-210D | KS-E2010R | KS-E2516R |
Stitch typ | Single needle ,lockstitch | ||
Sewing area | (X) 13mmx (Y) 60mm | (X) 200mmx (Y) 100mm | (X) 250mmx (Y) 160mm |
Max. Sewing speed | 2500rpm | 2000rpm | 2000rpm |
Sewing speed selection | 2500rpm | 2000rpm | 2000rpm |
Feeding system | Intermittent or Continuous | ||
Stitch length | 0.1~ 12.7mm (Minimum resolution 0.1mm) | ||
Scale- up/down function | 10~ 200% for each X .& Y. Axis ( 0.1 % increment/step ) | ||
Max. Number of stitches | 8000 stitches /pattern | ||
Needle | DPx17#8 | ||
Hook | Large size shuttle hook | ||
Work holder lift | 525 ~ 30mm | 18mm | 18mm |
Stepping foot lift | 20mm | ||
Stepping foot stroke | 4~ 10mm | ||
Presser foot system | Magnetic | Pneumatic | Pneumatic |
Main drving motor | 400W Driect servo motor 500W Driect servo motor | ||
Power | 200V1 Phase/380V 3 phase (土10% ) 600A | ||
Mass | 120Kg | 156Kg | 180Kg |
Measurement | 1,200mm ( W) x 860mm (D)X 1,170mm(H) | 1 ,200mm ( W ) x 1,100mm (D)X 1,170mm (H ) | 1,200mm (W ) x 1,150mm (D) X 1,170mm (H) |
