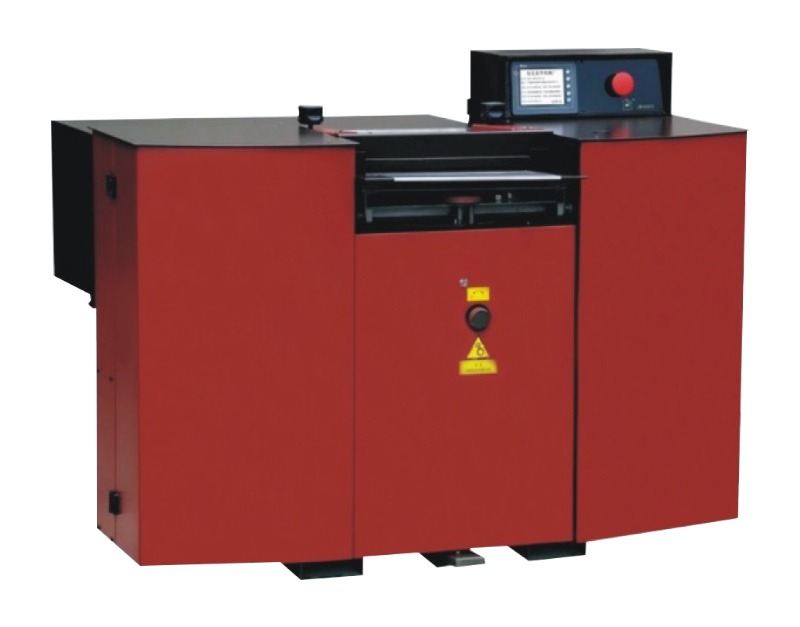

KS-07A
Product Details

1、With automatic positioning means, the tool adjustment is not needed,

2、Sharpening system: diamond dressing wheel grind; single handle to adjust the size of the wheel sharpening amount; quickly adjust the amount of knife mouth symmetric and width.

3、Automatically adjust the clearance between the tool and the platen so that the sheet Paper higher accuracy.

4、Sharpening dust and processing waste, separate vacuum system, comply with environmental requirements.

5、According to the type of material, optionally adjust the type of workbench pressure.

6、The machine failure, the alarm automatically and displays the fault  location; 6 with a two-speed motor-driven feed speed, has a special phase sequence identification device, ensure that the knife does not

reverse.


Specification:

Maximum film Paper width

620mm

Total power

3KW

The largest piece of skin thickness

8mm

Knife Specifications

0.8x 50x 3350mm

Net weight

720kg

Dimensions

1600 X 960 x 1230mm
